Hydraulic Power Packs

HYDRAINER Hydraulic Power Packs are specifically designed and developed to power the range of Hydrainer Hydraulic Submersible Pump Ends and incorporate the following features to ensure reliable performance:-

• Full Flow Oil Filtration.
• High and Low Pressure Relief Valves.
• High Oil Temperature Protection.
• Low Oil Level Protection.
Click on the image for further technical data.

Note: You will require a pdf reader such as Adobe Reader to view this document. You can download it here!
MODEL HYDRAULICS STANDARD POWER PACKS SUPER SILENT DECIPACS
NOMINAL
POWER
ENGINE NOMINAL
POWER
ENGINE NOISE EMISSION
@ FULL
WORKING LOAD

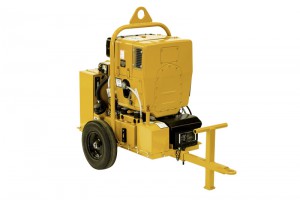

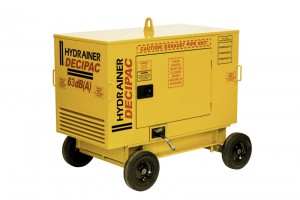

10 SERIES

Flow 20 I/min
Pressure 136 bar
9.0 hp
6.7 kW
Hatz Encapsulated
Air Cooled Diesel
10.4 hp
7.7 kW
Isuzu Water Cooled
Diesel
63 Dba @ 1 mtr
57 Dba @ 5 mtr
54 Dba @ 7 mtr

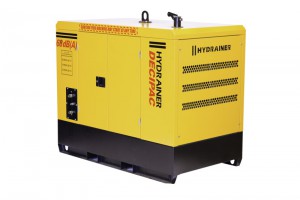

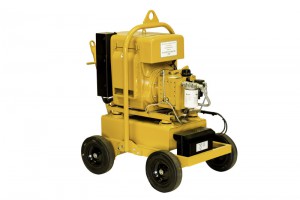

20 SERIES

Variable Flow to
30 I/min
Pressure 205 bar
31 hp
23 kW
Hatz Encapsulated
Air Cooled Diesel
24.2 hp
18.1 kW
Isuzu Water Cooled
Diesel
68 Dba @ 1 mtr
55 Dba @ 5 mtr
52 Dba @ 7 mtr

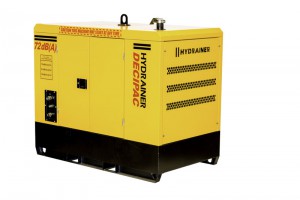

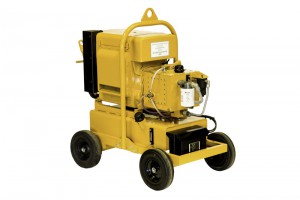

30 SERIES

Variable Flow to
60 I/min
Pressure 205 bar
47 hp
35 kW
Hatz Encapsulated
Air Cooled Diesel
42.7 hp
31.9 kW
Isuzu Water Cooled
Diesel
70 Dba @ 1 mtr
63 Dba @ 5 mtr
58 Dba @ 7 mtr
